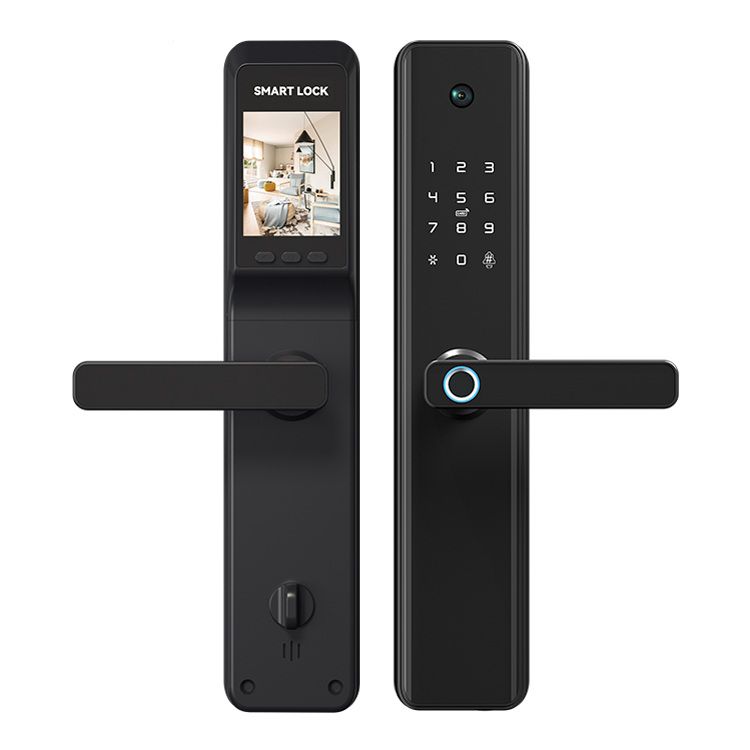

Intelligent Smart Door Lock with Cat Eye M1

Intelligent Smart Door Lock with Cat Eye M1

kindly see the video on YouTube for easy setup on WIFI (M1/K1 pro Setup)

Introducing the M1 Pro Intelligent Smart Door Lock, a state-of-the-art security solution that takes home protection to the next level. This cutting-edge smart lock comes with a built-in camera and bell, providing an all-in-one solution for advanced access control and surveillance. Equipped with various unlocking options, including WiFi through the Tuya App, fingerprint recognition, passcode entry, RFID card access, and traditional keys, the M1 Pro offers unparalleled convenience and security for modern homeowners.

Crafted with Curved Tempered Glass Aluminum Alloy, the M1 Pro boasts a sleek and sophisticated design, elevating the aesthetics of any door it graces. With a panel size of H370mm x W75mm and a striking black finish, it complements various architectural styles. The lock’s dimensions of 250*24mm make it suitable for door thickness ranging from 45mm to 120mm, ensuring wide compatibility with different types of doors. Experience the ultimate in home security with the M1 Pro Intelligent Smart Door Lock, a powerful combination of cutting-edge technology and elegant design, providing peace of mind and convenience for your daily life.

– Fingerprint Unlocking

– Card Unlocking

– Passcode Unlocking

– Bluetooth Unlocking

– App/WIFI Unlocking (TUYA APP)

– Key (Emergency)

– Built in Camera CAT EYE 161 degree super wide angle / 720p HD Picture Quality / 25 FPS Smooth Picture

– Built in Bell (when it rings the indoor screen will automatically show the situation outside)

will notify on your TUYA APP with an option to unlock via remotely and a picture will be shown

– Remote Video Unlocking

– Back-up USB external power supply interface, in case batteries are dead

– Reversible freestyle handle (Left or Right)

– Material: Curved Tempered Glass Aluminum Alloy

– Panel : H370mm x W75mm

– Finish: Black

– Lock Size: 250*24mm

– Fingerprint Sensor: Semi-conducting fingerprint reader

– Lock Latch: 1-Eu standard / 2- American standard / 3- China Standard

– Batteries: 8x AA (not included)

– Fingerprint Capacity: 100 Fingerprints

– RFID card: 100 Users

– Applicable door thickness: 45mm – 120mm

Exterior panel x 1
Interior panel x 1
Interior bottom plate x 1
Lock body x 1
Mounting Accessories (screws) x 1
Cards x 2
Keys x 2
User manual x 1
